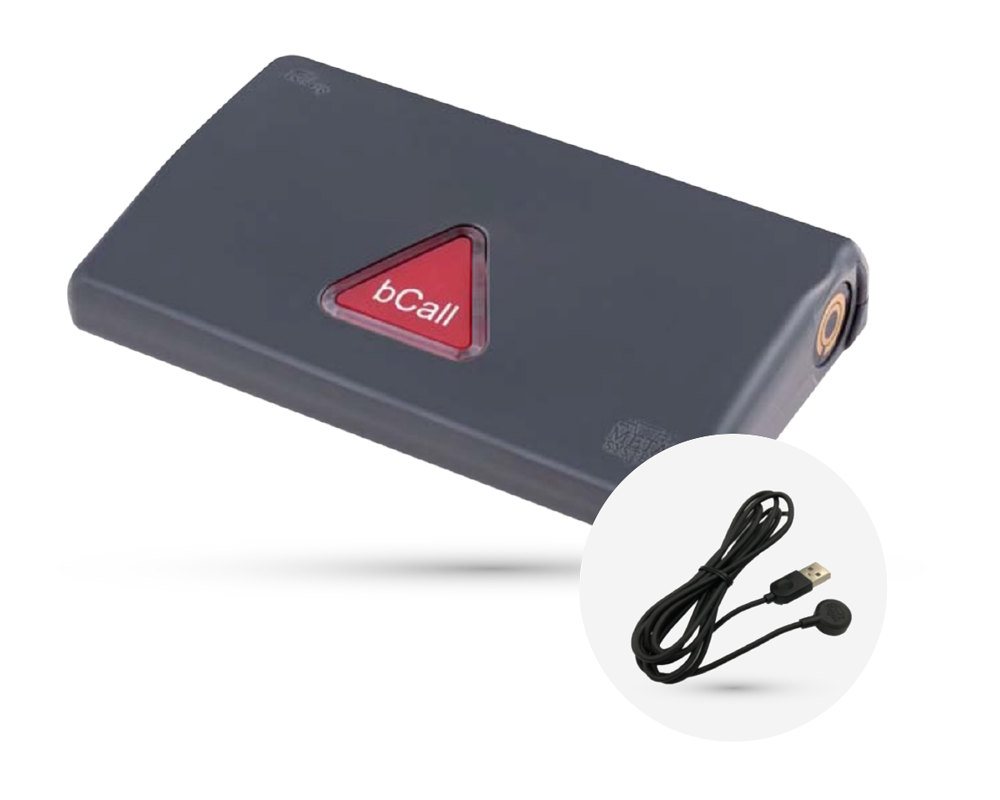

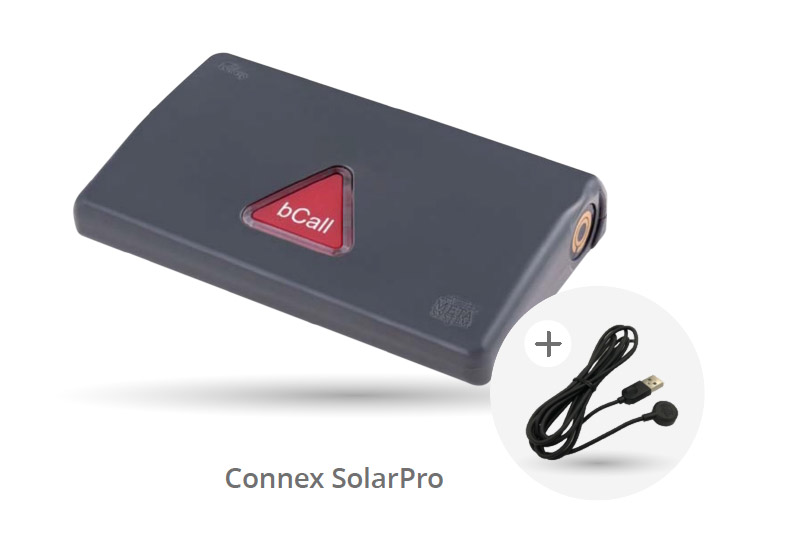

PA52WN > eCall solar panel telematics device

6 Axis accelerometer & gyroscope for precise crash detection

Event recorder that records trips and send crash data on detection of a crash

400mW Solar power on the back panel to support internal battery (2Ah, 4.8Wh)

bCall Button - Emergency/Breakdown assist

Multicolour LED

Magnetic contact for USB recharge (total recharge time is within 4 hrs)

Patented algorithm for run and stop detection

Patented algorithm for Crash detection

— Main Features

No wiring to the vehicle

Internal battery with 2Ah, 4.8Wh, very low self discharge, high temperature resistant

Up to 500,000 Tracking Points (256 Mb memory)

Patented algorithm for Run & Stop detection

Patented algorithm for crash detection

  • Programmable periodic wake-up
  • FOTA
  • Geofencing

Large bCall pushbutton

— Technical specifications

  • CPU Cortex M4 120 MHz 150 MIPS 1Mbyte Flash
  • GNSS receiver (GLONASS
  • Concurrent GPS or Compass)
  • GSM/GPRS quad-band modem with Voice
  • Internal GPRS Antenna & GNSS antenna
  • Rechargeable battery – 2.4V
  • 2Ah
  • 85 degree C
  • low self-discharge
  • 3-axis internal Accelerometer (full scale 24g) for crash detection
  • 6-axis internal Inertial Measurement Unit (Accelerometer + Gyroscope + Motion Engine)
  • for orientation
  • 32Mbit Flash Memory (option up to 256Mbit)
  • eSIM – M2M
  • bCall button with 3 RGB Status LEDs
  • Bluetooth LE interface (Optional)
  • Weight > 110gm
  • Operating Voltage (5-15) Vdc
  • IP 65 protectio

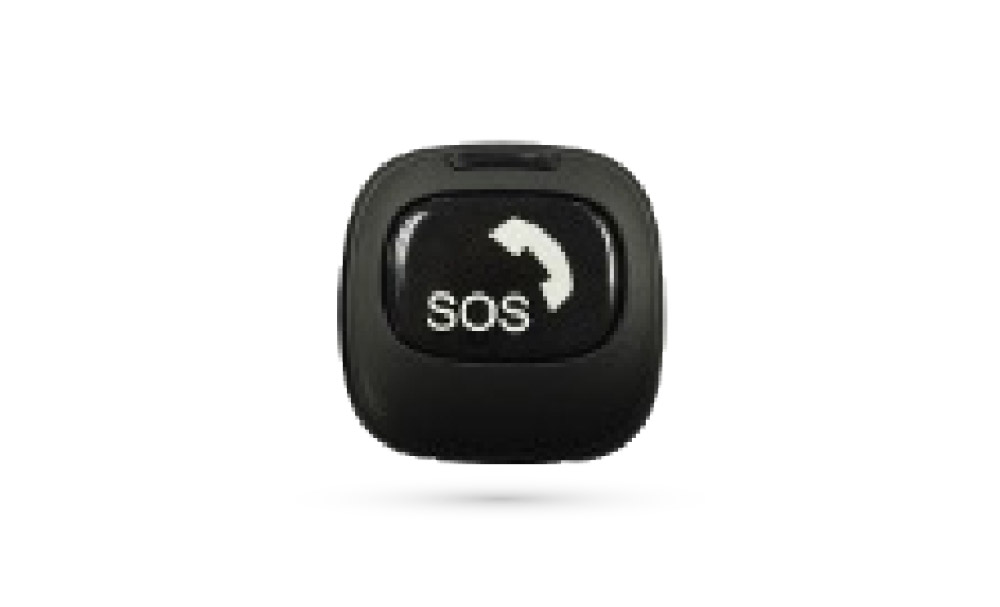

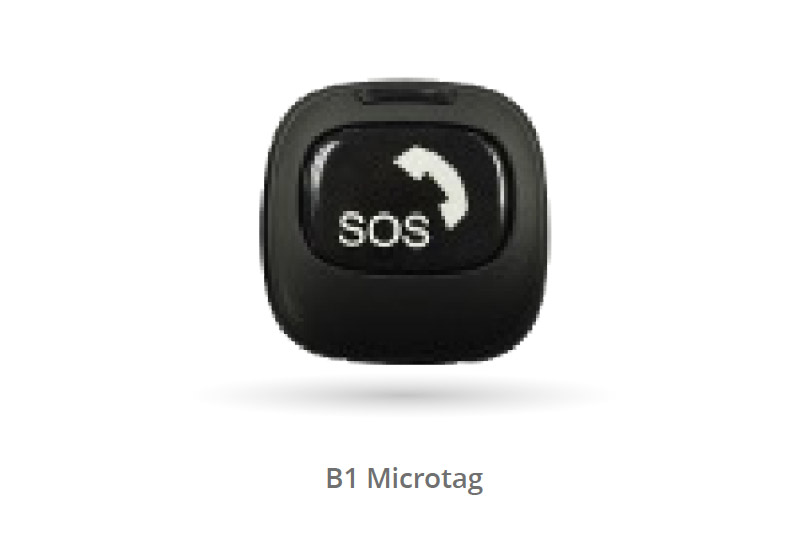

B1 Microtag

Microtag device for ADR, Distraction & back-up SOS

Innovative compact design and small-size


Replaceable internal battery (CR2032)

LED and buzzer for real time user feedback and diagnostics

BLE with App for Automatic driver recognition (ADR)

Button for device ON/Off, request for assistance with SOC/Call centre

Learn more

— Installation Manual

Battery Replacement Steps

Connect to the phone

Pull open the slot

Remove the old battery from the slot

Insert Battery

Push the slot

Press the B1K button


What’s inside the package?

Notice: Undefined index: title in /var/www/html/wp-content/plugins/hub-core/shortcodes/hotspots/view.php on line 60

Magnetic contact for USB recharge
