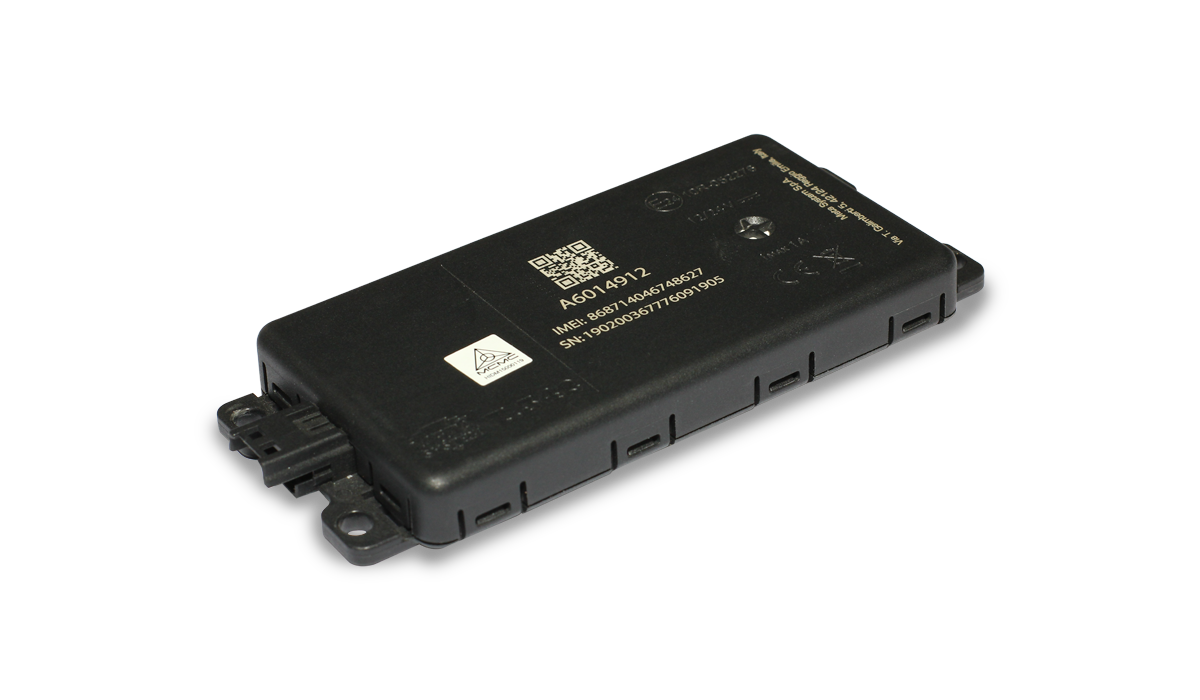

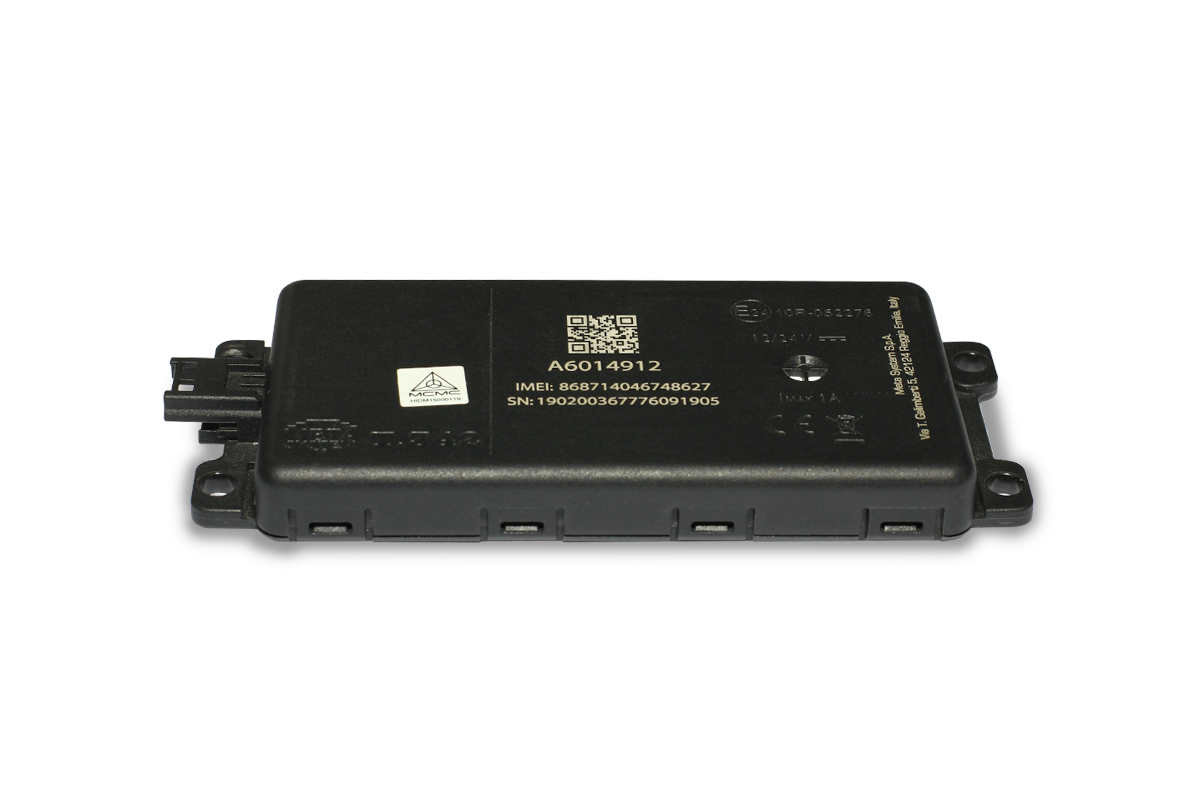

CSE – Automotive OEM 15-T.342 2/3 Wire + ADR

T.342 2/3 Wire + ADR

2-wire /3 wire cable (IP67) Car-battery
Very low power architecture (<1mA in motion detection)
Patented crash detection algorithm 3-axis full scale accelerometer 24G for precise crash detection
Event recorder that records trips and send crash data on detection of a crash
Rechargeable battery 230mA/h 7.2V
IP67 Waterproof
256 Mb CPU – up to 500k tracking points
6 axis inertial measurement unit (accelerometer, gyroscope and motion engine) for orientation Fit in any direction

— Main Features

No wiring to the vehicle

Wire free, self powered up to 2 years battery life – easy battery replacement

IoT Data SIM – roaming on Celcom, Digi & Maxis

3 axis motion sensor

3 daily wake up time security check

3 daily wake up time health-check

High accuracy of positioning

FOTA

— Technical specifications

CPU Cortex M4 120 MHz 150 MIPS 1Mbyte Flash
GNSS receiver (GLONASS, Concurrent GPS or Compass)
GSM/GPRS quad-band modem with Voice
Internal GPRS Antenna & GNSS antenna
Rechargeable battery – 2.4V, 2Ah, 85 degree C, low self-discharge
3-axis internal Accelerometer (full scale 24g) for crash detection
6-axis internal Inertial Measurement Unit (Accelerometer + Gyroscope + Motion Engine) for orientation
