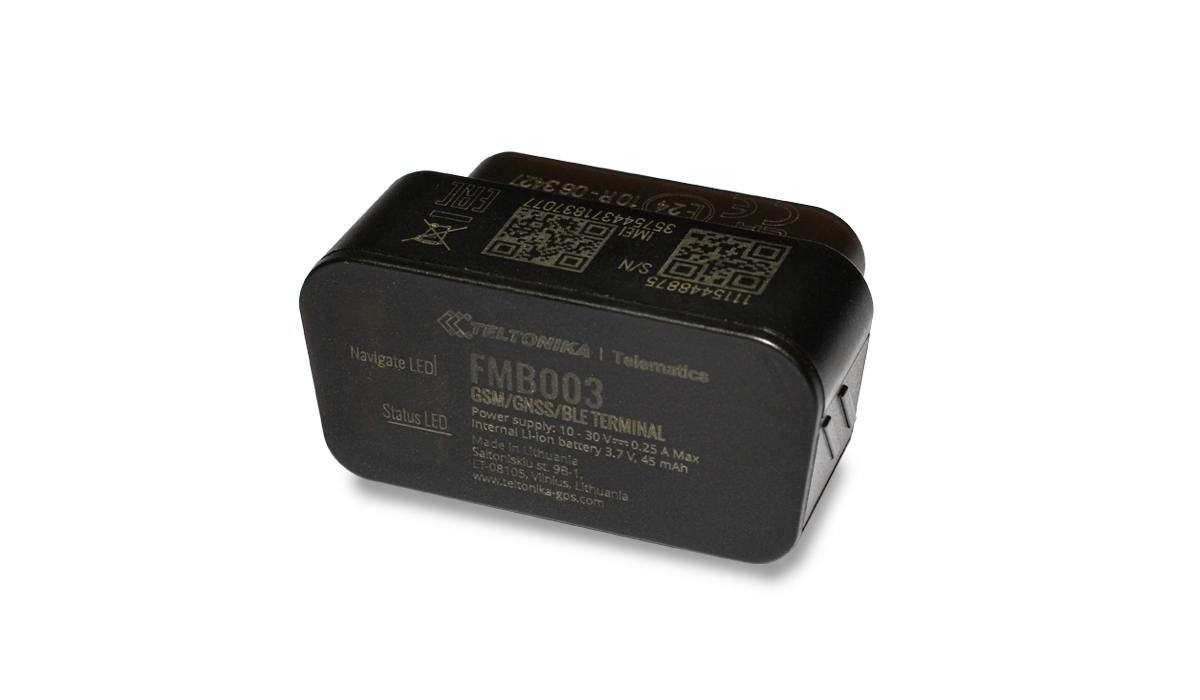

CSE – Automotive OEM 16-T.003 OBD + ADR

T.003 OBD + ADR

— Main Features

No wiring to the vehicle

Wire free, self powered up to 2 years battery life – easy battery replacement

IoT Data SIM – roaming on Celcom, Digi & Maxis

3 axis motion sensor

3 daily wake up time security check

3 daily wake up time health-check

High accuracy of positioning

FOTA

— Technical specifications

CPU Cortex M4 120 MHz 150 MIPS 1Mbyte Flash
GNSS receiver (GLONASS, Concurrent GPS or Compass)
GSM/GPRS quad-band modem with Voice
Internal GPRS Antenna & GNSS antenna
Rechargeable battery – 2.4V, 2Ah, 85 degree C, low self-discharge
3-axis internal Accelerometer (full scale 24g) for crash detection
6-axis internal Inertial Measurement Unit (Accelerometer + Gyroscope + Motion Engine) for orientation
