EasyPro Voice T.342 + B.21

— Main Features

No wiring to the vehicle

Wire free, self powered up to 2 years battery life – easy battery replacement

IoT Data SIM – roaming on Celcom, Digi & Maxis

3 axis motion sensor

3 daily wake up time security check

3 daily wake up time health-check

High accuracy of positioning

FOTA

— Technical specifications

CPU Cortex M4 120 MHz 150 MIPS 1Mbyte Flash
GNSS receiver (GLONASS, Concurrent GPS or Compass)
GSM/GPRS quad-band modem with Voice
Internal GPRS Antenna & GNSS antenna
Rechargeable battery – 2.4V, 2Ah, 85 degree C, low self-discharge
3-axis internal Accelerometer (full scale 24g) for crash detection
6-axis internal Inertial Measurement Unit (Accelerometer + Gyroscope + Motion Engine) for orientation

32Mbit Flash Memory (option up to 256Mbit)
eSIM – M2M
bCall button with 3 RGB Status LEDs
Bluetooth LE interface (Optional)
Weight > 110gm
Operating Voltage (5-15) Vdc
IP 65 protection

B21L eCall Voice box

2-wire cable Car-battery
2-wire cable – +30, GND (Fuse box)
Emergency assist
Multicolor LED
Breakdown assist
Microphone
Speaker

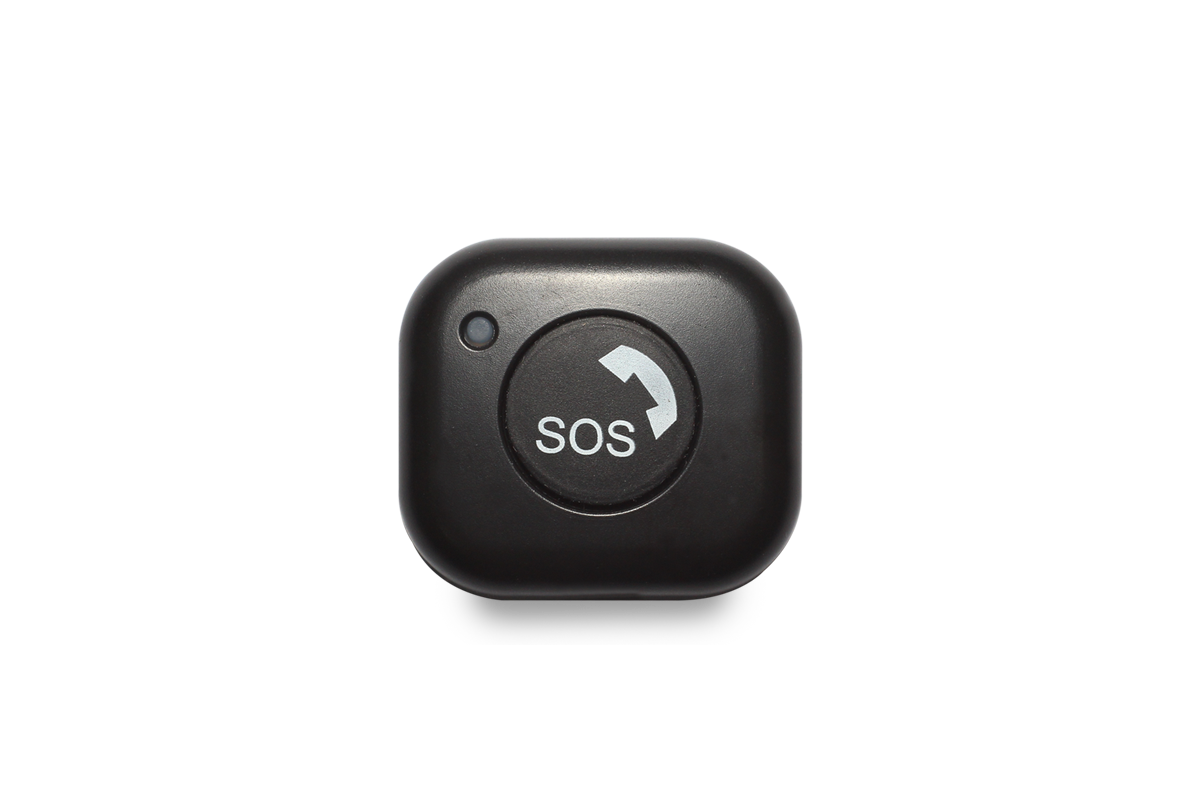

B1 Microtag

Microtag device for ADR, Distraction & back-up SOS

BLE Immobiliser

T.100 SPD

What’s inside the package?

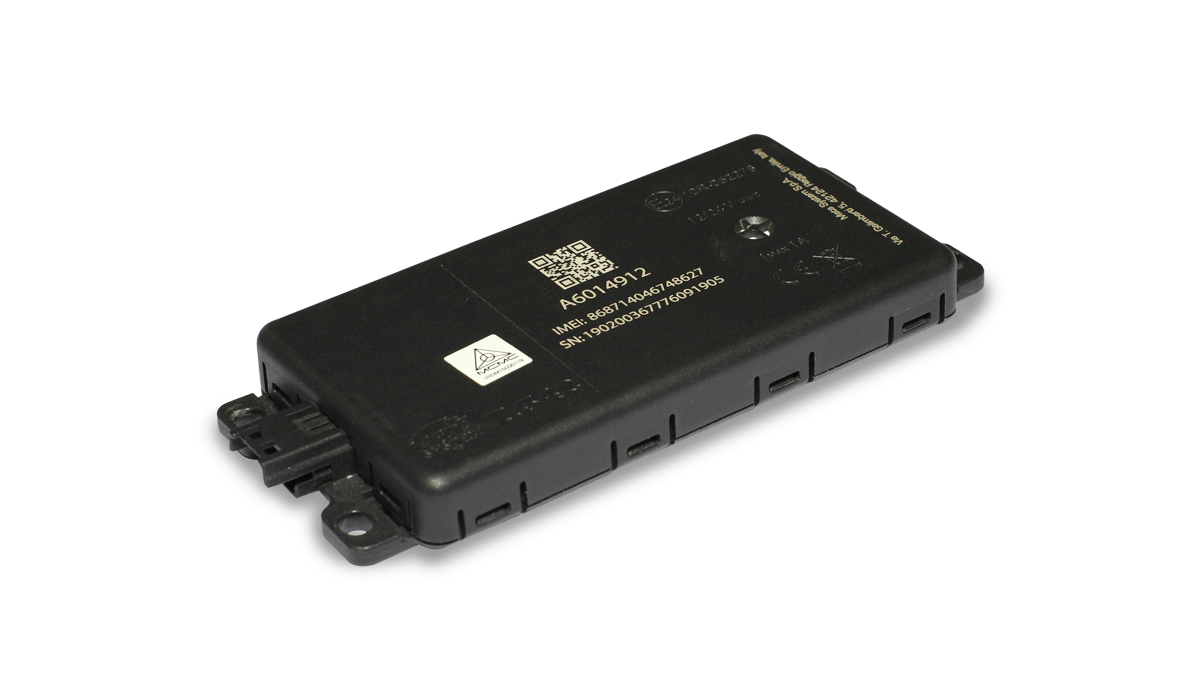

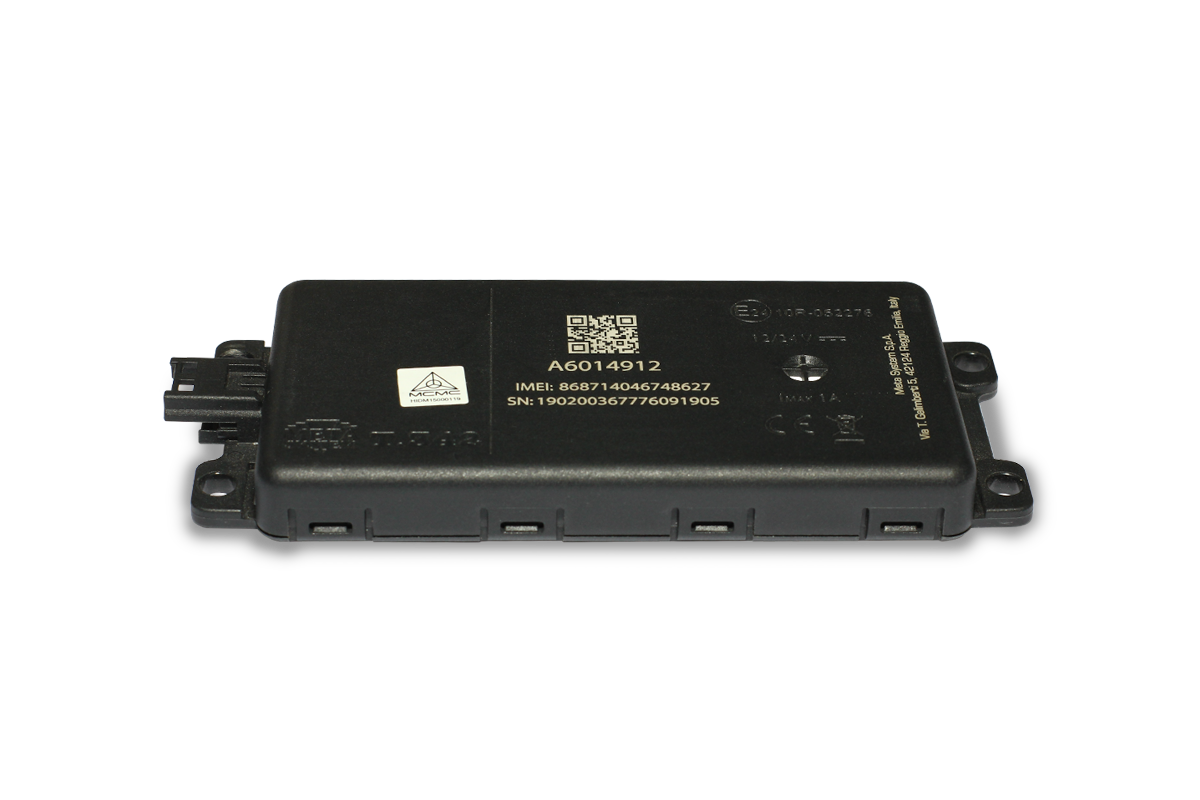

T.342

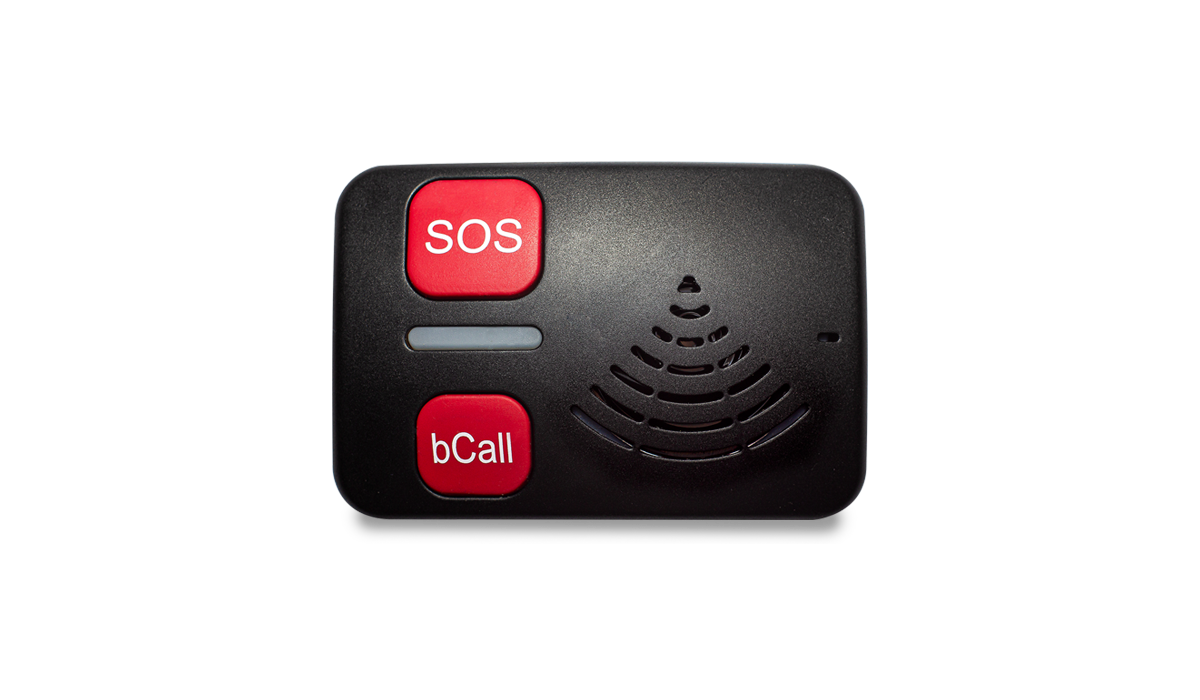

B21L eCall Voicebox

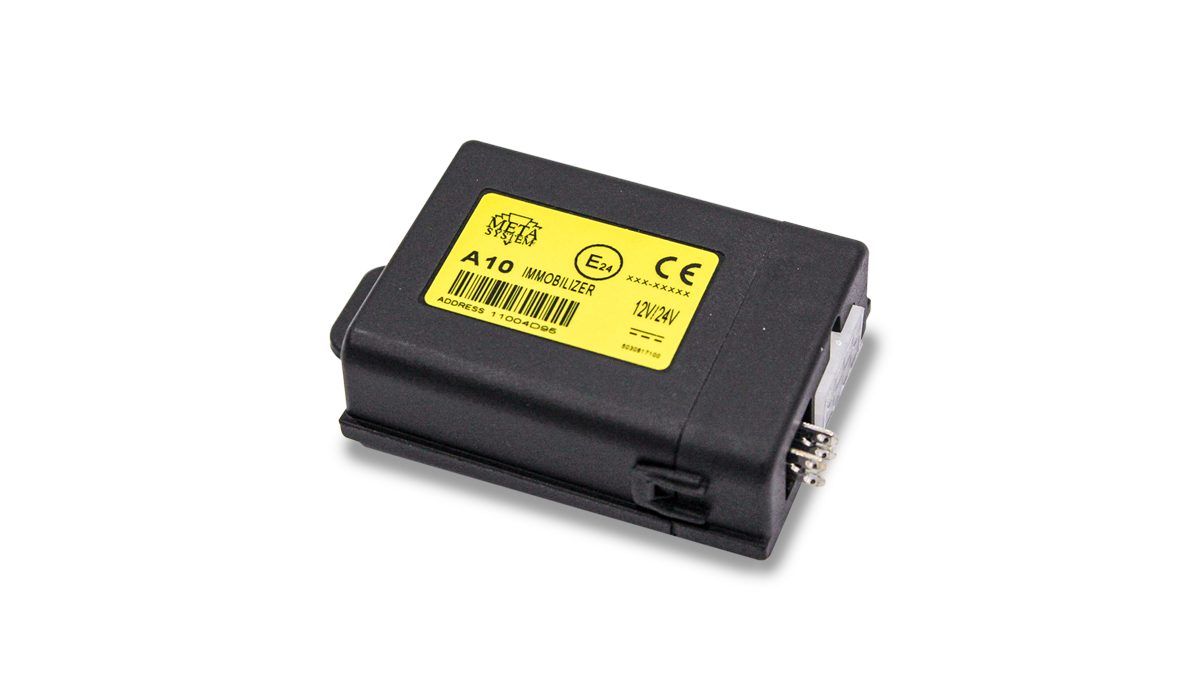

BLE Immobiliser

Interested in our Connected Car products?
